Saco vffs de pelotas de madeira de 15 kg formando máquina de ensacamento e selagem de enchimento

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Introdução :

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Parâmetros técnicos:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Necessidade de ar comprimido: 0,6Mpa 0,65m³/min

Reel outer diameter: 450mm

Diâmetro interno do núcleo: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Principais Características e Características:

• Uma vasta gama de bolsas: bolsas Almofada e Gusset.
• Alta velocidade: 20-50 sacos/min
• Fácil de operar: controlador PLC e tela sensível ao toque colorida, indicação de falha na tela sensível ao toque.
• Fácil de ajustar: apenas cerca de 10 minutos para trocar diferentes bolsas.
• Controle de freqüência: a velocidade pode ser ajustada pela conversão de freqüência dentro do intervalo.
• Automação alta: não tripulado no processo de pesagem e embalagem, alarme da máquina automaticamente quando falha.
• Segurança e Higiene:
• Sem filme, a máquina irá alarmar.
• Alarme da máquina e parar quando a pressão de ar inadequada.
• Protetores de segurança com interruptores de segurança, alarme da máquina e parada quando as proteções de segurança são abertas.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

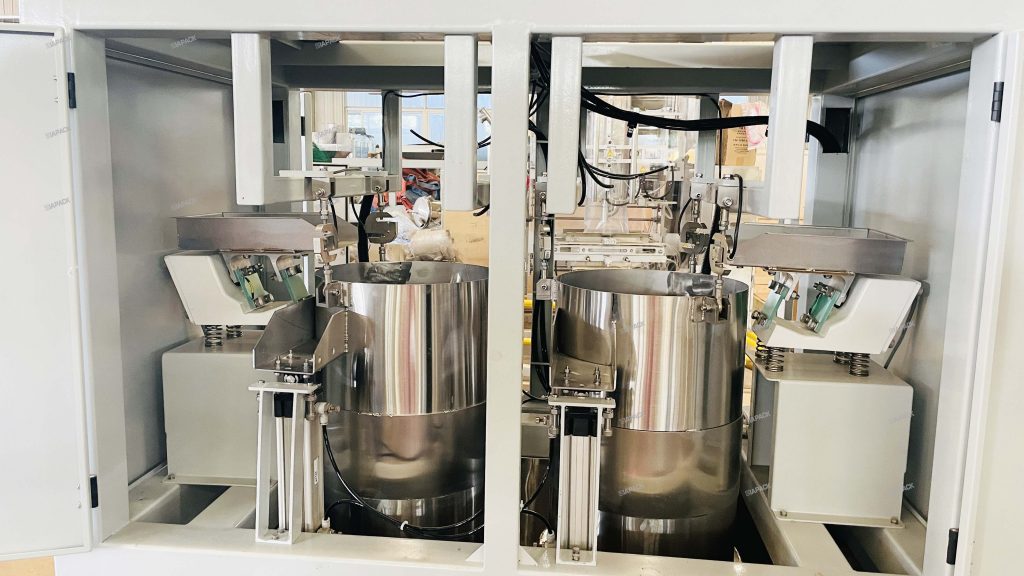

• ZLC2-15k double bucket weighing machine

  Introdução :

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Características:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
